Astral ARX32
SKU: ARM-RF-SD-ASTRAL-ARX32

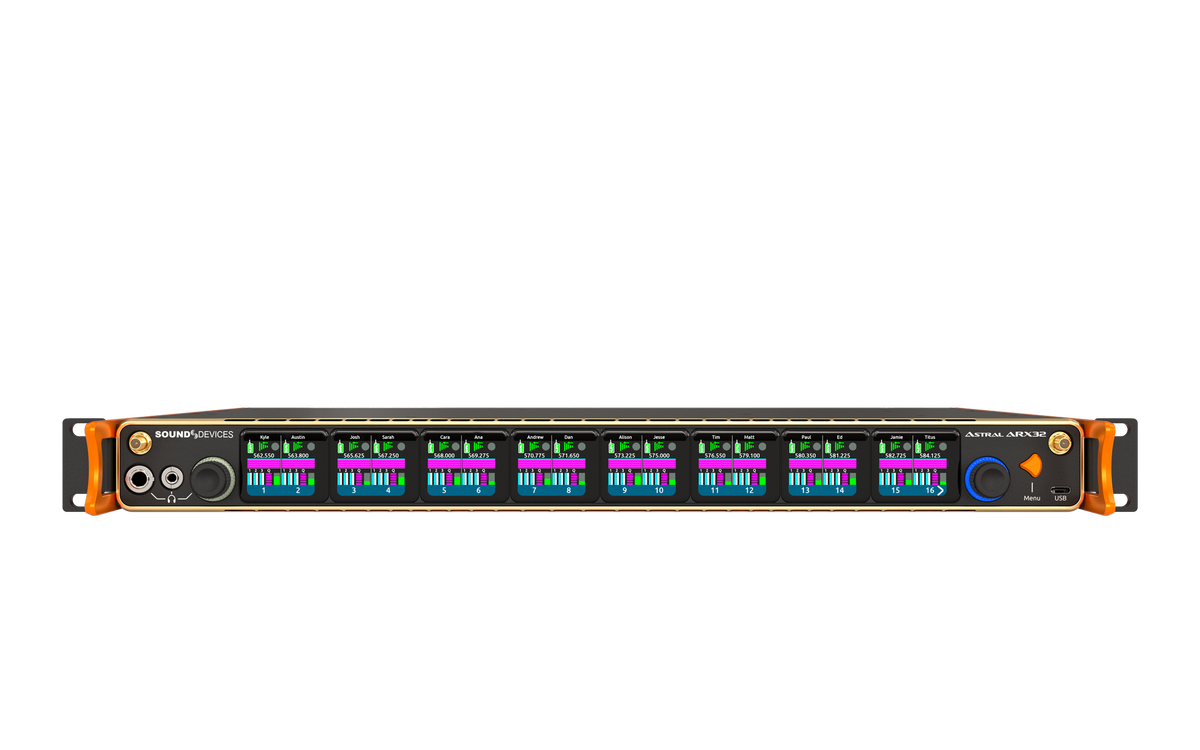

The Sound Devices Astral ARX32 is a 1RU digital wireless receiver for larger broadcast, theatre and live production systems. HexVersity reception, flexible audio routing and network control help bring multiple wireless channels together in one rack space.
Included channel configuration
This listing is for the base 16-channel receiver. Expansion to 24 or 32 channels requires additional eight-channel software licences, supplied separately. Ask ARM for a quote for your required channel count.
Key features
- HexVersity reception with two to six antennas.
- SpectraBand tuning from 169–1525 MHz, with frequencies dependent on region.
- NexLink remote control of compatible Astral transmitters.
- Integrated real-time spectrum analysis and AutoAssign frequency deployment.
- Dante, MADI, AES and analogue outputs.
- RF Mirror Mode for redundant operation.
- Browser control through the built-in Web App.
System planning
Contact ARM to discuss channel expansion, antenna distribution, connectivity and the optional Astral Opto interface. Expansion licences and optional accessories are quoted separately.
RRP $0.00 AUD
Price $65,645.00 AUD
Save $-65,645.00 AUD
Including GSTinc.
In stock
Available from ARM stock.
Contact ARM to confirm stock availability and your required configuration.
TECHNICAL DETAILS
Specifications
The details you need to plan your system. Expand a section to explore.
Wireless & reception
| Specification | Details |
|---|---|
| Included receiver channels | 16 |
| Expandable capacity | Up to 32 with additional licences |
| Tuning range | 169–1525 MHz; region dependent |
| Diversity | HexVersity; supports two to six antenna inputs |
RF & reception
| Specification | Details |
|---|---|
| Tuning | 169 to 1525 MHz (1356 MHz switching bandwidth); 25 kHz steps; SpectraBand Technology for maximum rejection of out-of-band signals; Available frequencies depend on country of operation; 3 bands each with their own assignable filter range, typically 24 MHz wide for a total of 72 MHz simultaneously usable bandwidth. |
| Modulation | Proprietary, 100% digital RF modulation; Standard, Long Range, or T&M (Test & Measurement) selectable per channel. |
| Spurious Rejection | >100 dB typical |
| Cascade output | 50-ohm; +1 dB gain from BNC input to output; less than 1 dB input to output loss in the event of power failure.; Band-limited as per LNA pre-select filter. |
| RF Bias output | 12V, 200 mA each BNC; Smart antenna support, Wisycom-compatible |
| Antenna Inputs | Multiple Antenna Modes switchable between Diversity, 4Versity, 4Versity + 1 Pair, HexVersity, 3-Zone Combiner, 2-Zone Combiner + 1 Pair, 3-Way Diversity, Diversity + 1 Pair |
Audio outputs & synchronisation
| Specification | Details |
|---|---|
| Latency | Standard modulation = 2 ms, analog or digital outputs; Long Range modulation = 3.9 ms, analog or digital outputs; T&M (Test and Measurement) modulation = 7 ms, analog or digital outputs |
| Audio Frequency Response | 10 Hz–20 kHz, +/- 1 dB relative to 1 kHz |
| Dynamic Range | > 140 dB with an Astral transmitter |
| Analog Outputs | RJ45 connectors conforming to the AES72 Type 1M pin-out standard,; Balanced connection; 120 ohm output impedance |
| Analog Output Level / Line | +20 dBu for 0 dBFS |
| Analog Output Level / Guitar | +20 dBu for -5 dBFS (note: same as Line output, but level matched for Astral Guitar Box balanced-to-1/4" unbalanced converter) |
| Analog Output Level / -10 | +6 dBu for 0 dBFS |
| Analog Output Level / Mic | -20 dBu for 0 dBFS |
| Tone Generator | 1 kHz tone, adjustable from -20 to 0 dBFS |
| Audio Output Sample Rate | 48 or 96 kHz |
| Digital Audio Output / MADI | unbalanced BNC, 75-ohm output impedance |
| Digital Audio Output / AES3 | RJ45 connectors conforming to the AES72 Type 1M pin-out standard, balanced connection, 110-ohm output impedance |
| Digital Audio Output | Optocore with optional Astral Opto (HMA connector) or Astral Opto(ST) (ST connector) |
| Audio-Over-IP | Dante, 48 or 96 kHz sample rate |
| Sync | LTC / Wordclock BNC input, software-switchable 75-ohm termination; Dante; MADI, unbalanced BNC, 75-ohm output impedance |
Network audio & control
| Specification | Details |
|---|---|
| Dante Audio-Over-IP | 32 input/output channels.; Primary and Secondary ports for Dante Redundancy |
| Control | Web-based control and monitoring of all Astral ARX32 settings; GPIO with the optional Astral Opto or Astral Opto(ST) accessory |
| Connections / 2x RJ45 ports and 2x SFP ports | For Dante, Control, and Astral Outpost |
NexLink transmitter control
| Specification | Details |
|---|---|
| Protocol | 2.4 GHz, proprietary frequency-hopping backlink control of transmitters over long distance |
| Connections | Front or rear diversity pair; SMA-F ports for connecting 2.4 GHz SMA-M antennas |
USB connections
| Specification | Details |
|---|---|
| Type / USB-A | 5V, 1.0A output; supports keyboards, flash drives, Astral transmitters, Astral Outpost, and USB hubs |
| Type / USB-C | 5V, 3A output; supports keyboards, flash drives, Astral transmitters, Astral Outpost, and USB hubs |
| Drive Format | FAT32 |
Power & distribution
| Specification | Details |
|---|---|
| Powering / AC Input | 100-240 VAC, 200W |
| Powering / DC Input | 10-18 VDC, 200W |
| Powering | PoE+ out (max 30W) |
Dimensions, weight & environment
| Specification | Details |
|---|---|
| Operating Temperature Range | -10 to 40 C; 14 to 104 F |
| Dimensions (H x W x D) | 4.2 cm x 44.5 cm x 31.1 cm; 1.65 in x 17.5 in 12.24 in |
| Weight | 4.12 kg (unpackaged); 9.00 lbs. (unpackaged); 4.3 kg (packaged); 9.5 lbs. (packaged) |
Base configuration is 16 channels. Additional channel licences and Astral Opto expansion are sold separately. Frequency availability depends on region.
Technical specifications from Sound Devices product information and user guides, organised for ARM. Features may depend on installed firmware and optional licences.
