Home / Equipment / DPA 6061 CORE — Loud SPL Subminiature Lavalier

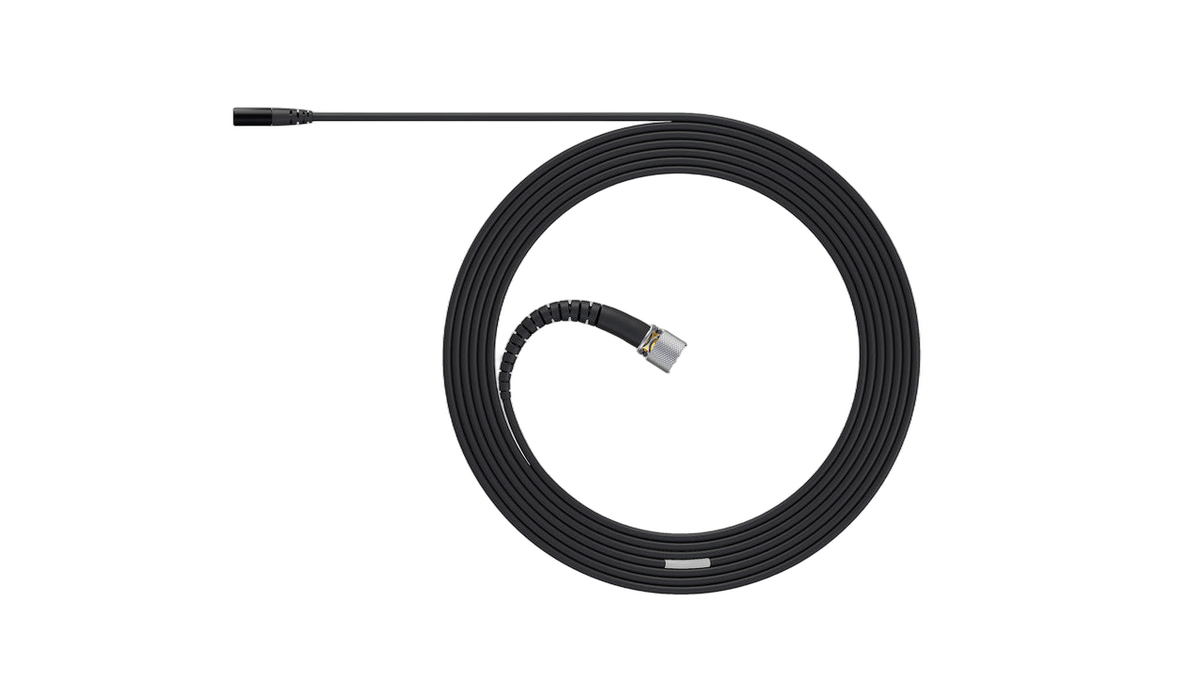

DPA 6061 Black / MicroLock

Black / MicroLock

DPA Microphones / Professional Audio

DPA 6061 CORE — Loud SPL Subminiature Lavalier

SKU: ARM-MIC-DPA-6061-OC-U-B90

A 3 mm omnidirectional lavalier for discreet speech and performance capture. The 6061’s lower sensitivity provides additional headroom for louder voices and close placement, including theatre applications.

Choose the colour and connector for your setup. Confirm transmitter compatibility before ordering. Each configuration has its own ARM SKU and price.

Selected configuration

Price $1,029.00 AUD

Including GSTinc.

Available to order

Enquire for current supply date.

Need it by a particular date? Check with ARM.

Tell us what you need and when. We’ll confirm availability and estimated dispatch before you decide to order.

Contact ARM to confirm stock availability and your required configuration.

TECHNICAL DETAILS

Specifications

The details you need to plan your system. Expand a section to explore.

Capsule & acoustic performance
Capsule & acoustic performance
SpecificationDetails
Capsule3 mm pre-polarised condenser
Polar patternOmnidirectional
Published frequency response20 Hz–20 kHz
Sensitivity at 1 kHz6 mV/Pa; −44 dB re. 1 V/Pa
Equivalent noise, A-weightedTypical 26 dB(A); maximum 28 dB(A)
SPL at <1% THD125 dB SPL RMS / 128 dB SPL peak
Maximum SPL at 10% THD144 dB SPL peak
Configuration
Configuration
SpecificationDetails
Colour and connectorAs selected; only configurations present in the supplied DPA price list are offered
Wireless compatibilityConfirm connector wiring and transmitter compatibility before ordering

Specifications from DPA’s 6060/6061 CORE manual. The manual predates MicroLock; connector availability is checked against DPA’s current product page and the supplied distributor list.

Technical specifications: DPA Microphones. Reformatted for ARM.
