Focal Shape 50
SKU: ARM-MON-FOC-FOCSHP50

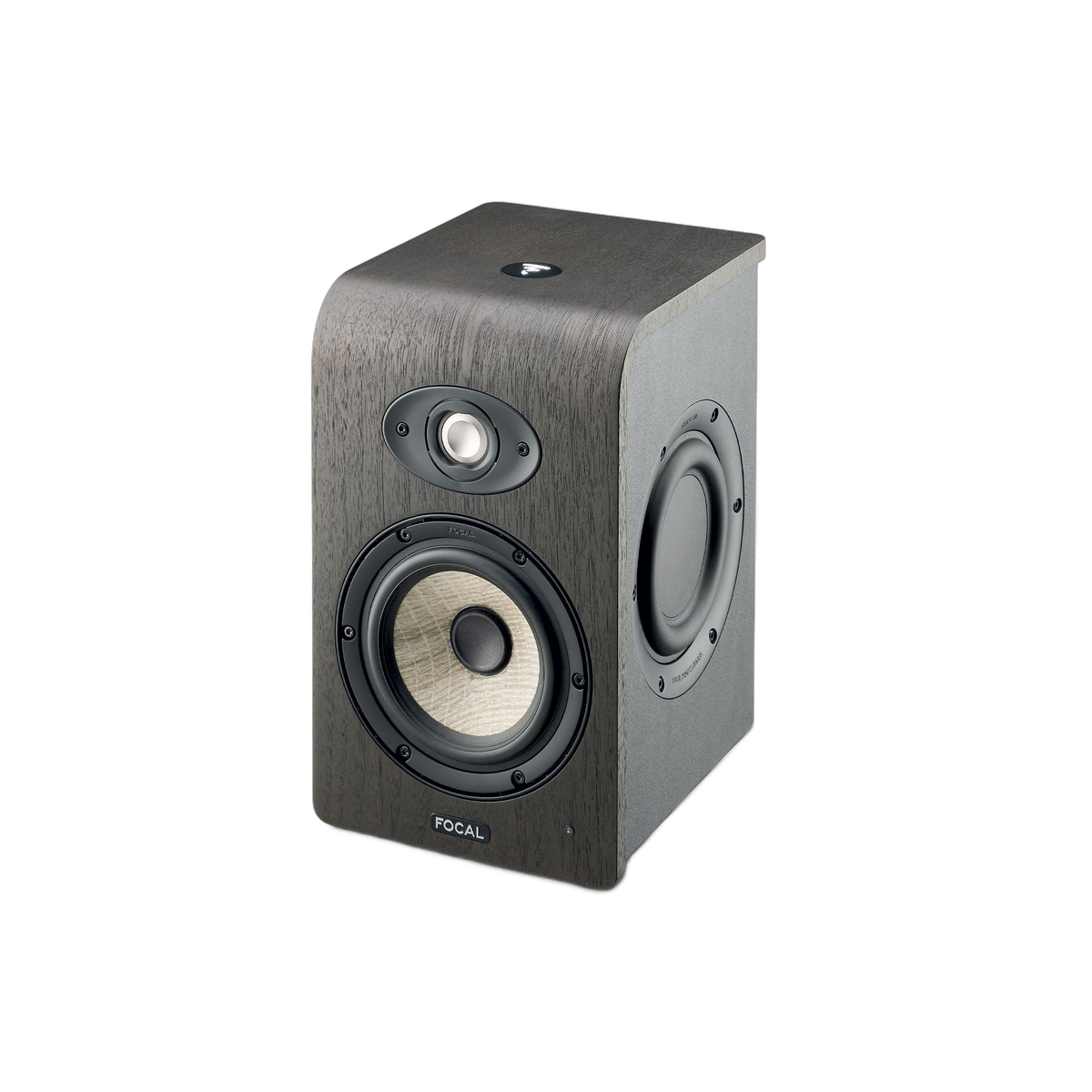

Focal Shape 50 — Active Nearfield Studio Monitor
For a compact editing or mixing space, Shape 50 offers a two-way monitoring system designed for close listening. Its 5-inch Flax woofer and aluminium-magnesium tweeter cover a published frequency response of 50 Hz–35 kHz.
Two passive radiators provide bass extension without a conventional port, giving more flexibility when positioning the monitor near a wall. Rear-panel filtering and EQ let you adjust the response to suit placement and the listening environment.
Key features
- 5-inch Flax-cone woofer
- 1-inch M-profile aluminium-magnesium tweeter
- Dual passive radiators
- Balanced XLR and unbalanced RCA inputs
- Adjustable high-pass filter and room-response controls
- Built-in Class AB amplification
Sold individually
Price is for one monitor. Order two for a stereo pair.
RRP $1,299.00 AUD
Price $1,299.00 AUD
Save $0.00 AUD
Including GSTinc.
Available to order
Please contact ARM before ordering speakers. We’ll confirm availability and discuss collection, local delivery or a freight quote before you pay.
Email ARM about this speakerContact ARM to confirm stock availability and your required configuration.
TECHNICAL DETAILS
Specifications
The details you need to plan your system. Expand a section to explore.
Dimensions & weight
| Specification | Details |
|---|---|
| Height | 31.2 cm |
| Width | 19.1 cm |
| Depth | 24.2 cm |
| Weight | 6.5 kg |
Acoustic performance
| Specification | Details |
|---|---|
| Product type | 2-way monitor |
| Loudspeakers | Woofer : 5" Flax membrane; Tweeter : 1" Aluminium-magnesium M shaped dome |
| Frequency response (±3 dB) | 50 Hz - 35 kHz |
| Maximum SPL (Focal web table, 1 m) | 106 dB |
Connections, amplification & controls
| Specification | Details |
|---|---|
| Bass/midrange level (160 Hz) | Adjustable, +/-3 dB |
| Inputs | XLR: balanced 10 kΩ; RCA: unbalanced 10 kΩ with compensated sensitivity |
| High-pass filter | Full range, 45 Hz, 60 Hz, 90 Hz |
| LED | Power On LED |
| Mains supply | 220–240 V AC or 100–120 V AC |
| High frequency amplifier | 25 W, class AB |
| Low-frequency shelving | Adjustable +/-6dB |
| Power switch | On/Off switch on the rear panel |
| Mid-range and low frequency amplifier | 60 W, class AB |
| High-frequency shelving | Adjustable +/-3dB |
| Indicators and controls | HPF, LF Shelv, LMF EQ, HF Shelv |
Cabinet, standby & installation
| Specification | Details |
|---|---|
| Automatic standby | Approximately 30 minutes without signal; wake-up threshold >3 mV |
| Standby consumption | <0.5 W |
| Power connection | IEC inlet; detachable power cable |
| Cabinet | 15 mm MDF; walnut veneer, vinyl and black paint |
| Low-mid EQ | 160 Hz, Q=1; ±3 dB |
| Installation | Mounting inserts; mounting accessories sold separately |
Specifications are based on Focal’s published product information.
Technical specifications: Focal product page and product sheet. Reformatted for ARM.
