FOCAL / Professional Audio
Focal Shape 65
SKU: ARM-MON-FOC-FOCSHP65

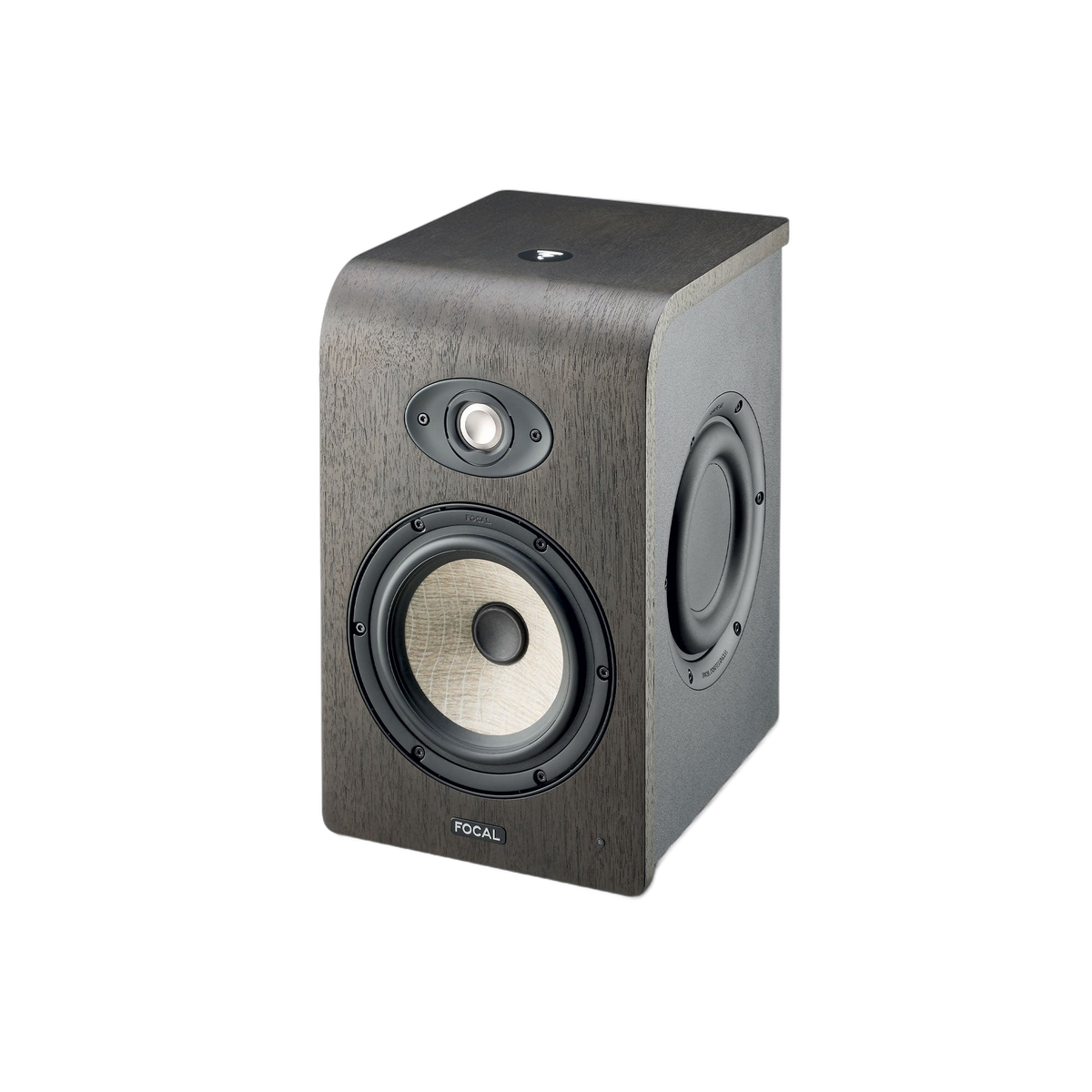

Focal Shape 65 — Active Nearfield Studio Monitor
Shape 65 is a two-way monitor for detailed nearfield work, pairing a 6.5-inch Flax woofer with an aluminium-magnesium tweeter. Two passive radiators extend the bass without a conventional port, giving more placement flexibility in compact recording and editing spaces.
Key features
- 6.5-inch Flax-cone woofer
- 1-inch M-profile aluminium-magnesium tweeter
- Dual passive radiators
- Balanced XLR and unbalanced RCA inputs
- Selectable high-pass filter and rear-panel EQ
Sold individually
Price is for one monitor. Order two for a stereo pair.
RRP $0.00 AUD
Price $1,699.00 AUD
Save $-1,699.00 AUD
Including GSTinc.
Available to order
Please contact ARM before ordering speakers. We’ll confirm availability and discuss collection, local delivery or a freight quote before you pay.
Email ARM about this speakerContact ARM to confirm stock availability and your required configuration.
TECHNICAL DETAILS
Specifications
The details you need to plan your system. Expand a section to explore.
Dimensions & weight
| Specification | Details |
|---|---|
| Height | 35.5 cm |
| Width | 21.8 cm |
| Depth | 28.5 cm |
| Weight | 8.5 kg |
Acoustic performance
| Specification | Details |
|---|---|
| Product type | 2-way monitor |
| Loudspeakers | Woofer : 6.5" Flax membrane; Tweeter : 1" Aluminium-magnesium M shaped dome |
| Frequency response (±3 dB) | 40 Hz - 35 kHz |
| Maximum SPL (Focal web table, 1 m) | 109 dB |
Connections, amplification & controls
| Specification | Details |
|---|---|
| Bass/midrange level (160 Hz) | Adjustable, +/-3 dB |
| Inputs | XLR: balanced 10 kΩ; RCA: unbalanced 10 kΩ with compensated sensitivity |
| High-pass filter | Full range, 45 Hz, 60 Hz, 90 Hz |
| LED | Power On LED |
| Mains supply | 220–240 V AC or 100–120 V AC |
| High frequency amplifier | 35 W, class AB |
| Low-frequency shelving | Adjustable +/-6dB |
| Power switch | On/Off switch on the rear panel |
| Mid-range and low frequency amplifier | 80 W, class AB |
| High-frequency shelving | Adjustable +/-3dB |
| Indicators and controls | HPF, LF Shelv, LMF EQ, HF Shelv |
Cabinet, standby & installation
| Specification | Details |
|---|---|
| Automatic standby | Approximately 30 minutes without signal; wake-up threshold >3 mV |
| Standby consumption | <0.5 W |
| Power connection | IEC inlet; detachable power cable |
| Cabinet | 15 mm MDF; walnut veneer, vinyl and black paint |
| Low-mid EQ | 160 Hz, Q=1; ±3 dB |
| Installation | Mounting inserts; mounting accessories sold separately |
HF amplifier ratings differ: Focal’s web table lists 35 W; the linked product sheet lists 25 W. Web-table values are retained above; differing sheet values are identified here for confirmation.
Technical specifications: Focal product page and product sheet. Reformatted for ARM.
