FOCAL / Professional Audio
Focal Sub12
SKU: ARM-MON-FOC-FOCSUB12

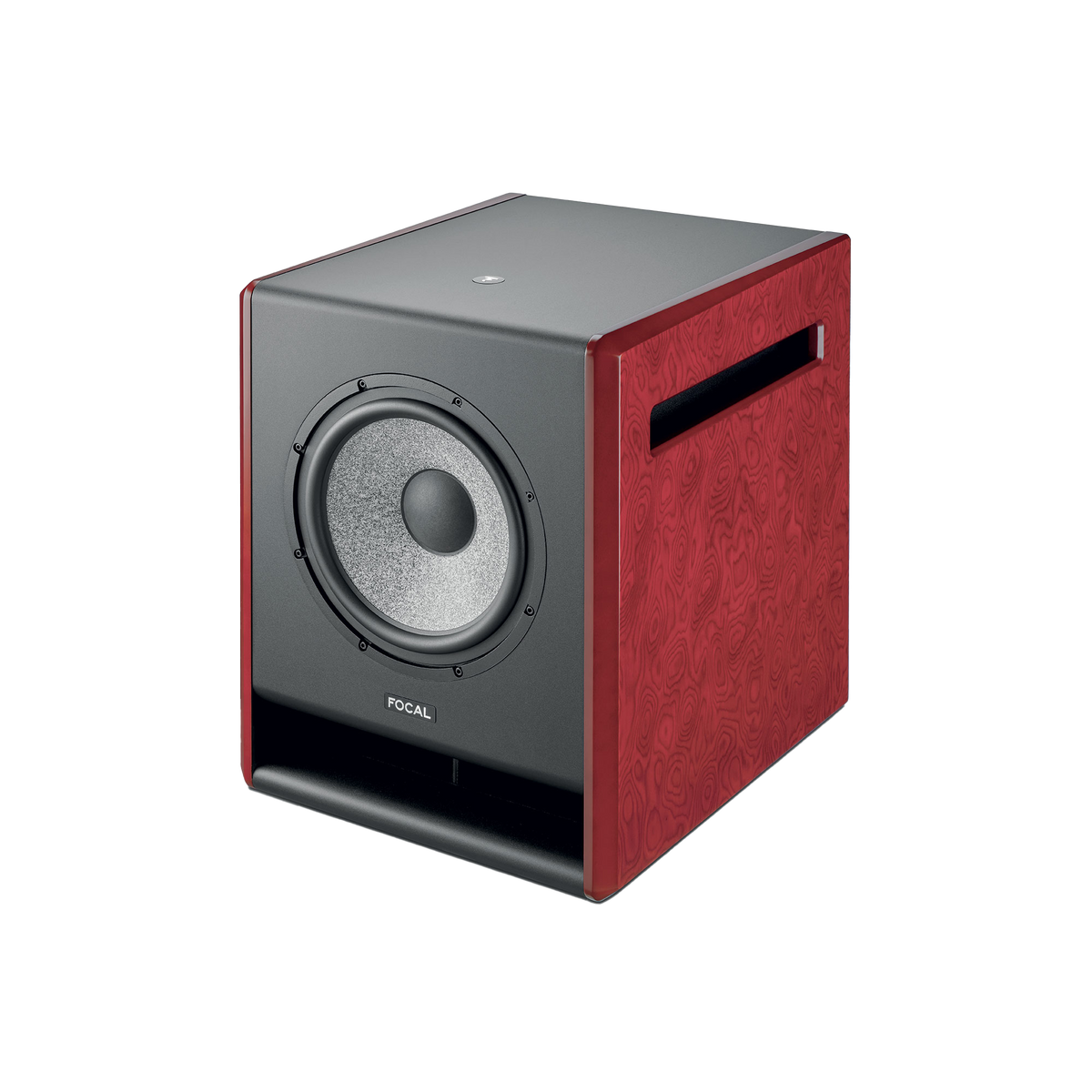

Focal Sub12 ST6 — Active Studio Subwoofer
Sub12 adds low-frequency monitoring to a professional studio system, including Focal ST6 setups. A high-excursion 13-inch W-cone driver is powered by a 600 W RMS amplifier, with adjustable filtering, phase and level for system integration.
Key features
- 13-inch W-cone bass driver
- 600 W RMS amplification
- Adjustable low-pass and high-pass filtering
- Phase and polarity controls
- Left/right and LFE connections
- Footswitch-controlled bypass connection
Purchase unit
Price is for one active subwoofer. Main monitors and external bypass footswitch are sold separately.
RRP $5,599.00 AUD
Price $5,599.00 AUD
Save $0.00 AUD
Including GSTinc.
Available to order
Please contact ARM before ordering speakers. We’ll confirm availability and discuss collection, local delivery or a freight quote before you pay.
Email ARM about this speakerContact ARM to confirm stock availability and your required configuration.
TECHNICAL DETAILS
Specifications
The details you need to plan your system. Expand a section to explore.
Dimensions & weight
| Specification | Details |
|---|---|
| Height | 60 cm |
| Width | 48.7 cm |
| Depth | 56.8 cm |
| Weight | 58 kg |
Acoustic performance
| Specification | Details |
|---|---|
| Product type | Active studio subwoofer |
| Loudspeakers | 13'' W membrane |
| Frequency response (±3 dB) | 28 Hz - 400 Hz |
| Maximum SPL (Focal web table, 1 m) | 125 dB |
Connections, amplification & controls
| Specification | Details |
|---|---|
| Inputs | Left,Right,LFE; XLR: balanced 10 kΩ; Variable |
| LED | Power on; Mute; Hi-pass defeat |
| Mains supply | 100–120 V AC or 220–240 V AC |
| Power switch | On/Off switch on the rear panel |
| Mid-range and low frequency amplifier | 600 W, class G |
| Indicators and controls | Sub level (sensitivity) adjustment; Lo-passe frequency adjustment; Phase adjustment; Polarity switch; Mute; 2.1 bypass (controlled by external footswitch); Hi-pass frequency selection; Hi-pass defeat |
Bass management & construction
| Specification | Details |
|---|---|
| Amplification | 600 W RMS; 1,000 W peak |
| Inputs | Balanced XLR Left, Right and LFE; 10 kΩ |
| Outputs | Balanced XLR Left and Right, 50 Ω; parallel LFE output |
| Crossover slopes | 24 dB/octave low-pass and switchable high-pass |
| Bass routing | Left/Right mono summation; LFE + mono low-pass |
| Shielding | Not magnetically shielded |
| Finish | Dark red natural veneer side panels; black body |
| Operating temperature | 5–35°C |
| Storage temperature | 0–50°C |
Focal’s web table lists maximum SPL as 125 dB; its product sheet specifies 124.5 dB average CEA2010B, 30–200 Hz, free field at 1 m. Web-table values are retained above; differing sheet values are identified here for confirmation.
Technical specifications: Focal product page and product sheet. Reformatted for ARM.
