FOCAL / Professional Audio
Focal Trio11 Be
SKU: ARM-MON-FOC-FOCTRIO11BE

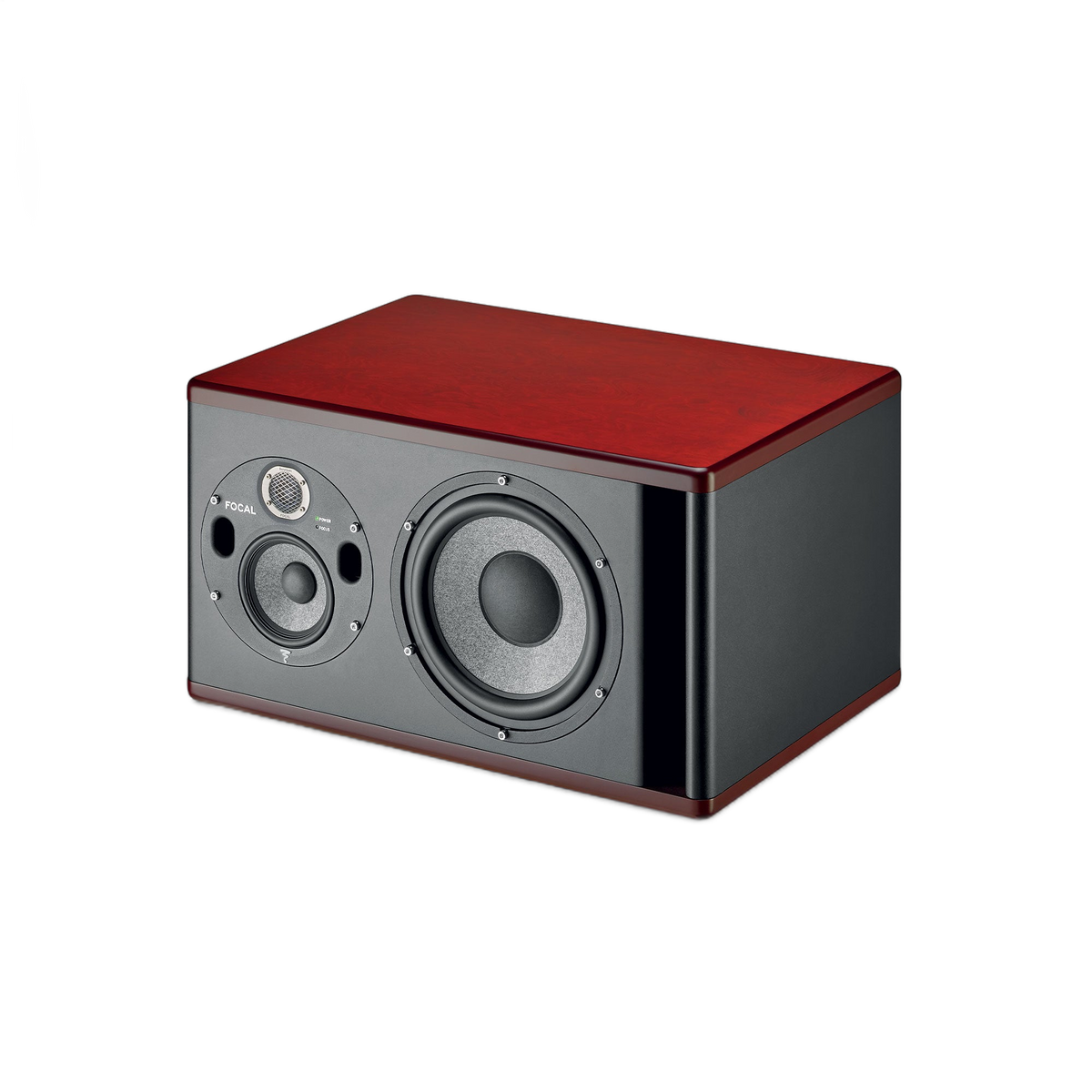

Focal Trio11 Be — Three-Way Nearfield and Midfield Monitor
For monitoring setups that need extended bass coverage and higher output, Trio11 Be combines dedicated low-, mid- and high-frequency drivers. Focus mode switches from the full three-way system to a two-way reference, giving an alternative perspective on the mix without changing the listening position.
Key features
- 11-inch W-cone bass driver
- 5-inch W-cone midrange driver
- 1-inch inverted-dome beryllium tweeter
- Three-way and two-way Focus operation
- Horizontal or vertical positioning
- Balanced XLR input and rear-panel response controls
Sold individually
Price is for one monitor. Order two for a stereo pair. Focus switching uses an external pedal, sold separately.
RRP $7,899.00 AUD
Price $7,899.00 AUD
Save $0.00 AUD
Including GSTinc.
Available to order
Please contact ARM before ordering speakers. We’ll confirm availability and discuss collection, local delivery or a freight quote before you pay.
Email ARM about this speakerContact ARM to confirm stock availability and your required configuration.
TECHNICAL DETAILS
Specifications
The details you need to plan your system. Expand a section to explore.
Dimensions & weight
| Specification | Details |
|---|---|
| Height | 63.5 cm |
| Width | 34.5 cm |
| Depth | 45 cm |
| Weight | 37.3 kg |
Acoustic performance
| Specification | Details |
|---|---|
| Product type | 3-way monitor |
| Loudspeakers | Subwoofer : 11" W membrane; Woofer : 5" W membrane; Tweeter : 1" Beryllium inverted dome |
| Frequency response (±3 dB) | 3-way mode: 30 Hz - 40 kHz; 2-way mode (Focus): 90 Hz - 20 kHz |
| Maximum SPL (Focal web table, 1 m) | 118 dB |
Connections, amplification & controls
| Specification | Details |
|---|---|
| Bass/midrange level (160 Hz) | Adjustable, +/-3 dB |
| Inputs | XLR: balanced 10 kΩ |
| LED | Power on; Focus mode; Clipping, default and stand-by |
| Mains supply | 230 V AC or 115 V AC |
| High frequency amplifier | 100 W, class AB |
| Low-frequency shelving | Adjustable, +/-3 dB |
| Power switch | On/Off switch on the rear panel |
| Mid-range and low frequency amplifier | Bass : 300 W, class G • Midrange : 150 W, class G |
| High-frequency shelving | Adjustable +/-3dB |
| Indicators and controls | Sensitivity; Auto standby; HPF, LF Shelv, LMF EQ, HF Shelv |
Routing & cabinet
| Specification | Details |
|---|---|
| Sensitivity | Selectable +4 dBu or −10 dBV |
| Focus connections | Focus input and output |
| Mid-treble plate | Rotates in 90° increments |
| Power connection | Detachable IEC cable |
| Cabinet | 21 and 30 mm MDF panels with internal bracing |
| Finish | Dark red burr ash veneer sides; black body |
Bass-driver size differs: Focal’s web table lists 11 inches; the linked product sheet lists 10 inches (25 cm). Web-table values are retained above; differing sheet values are identified here for confirmation.
Technical specifications: Focal product page and product sheet. Reformatted for ARM.
