Sound Devices / Professional Audio

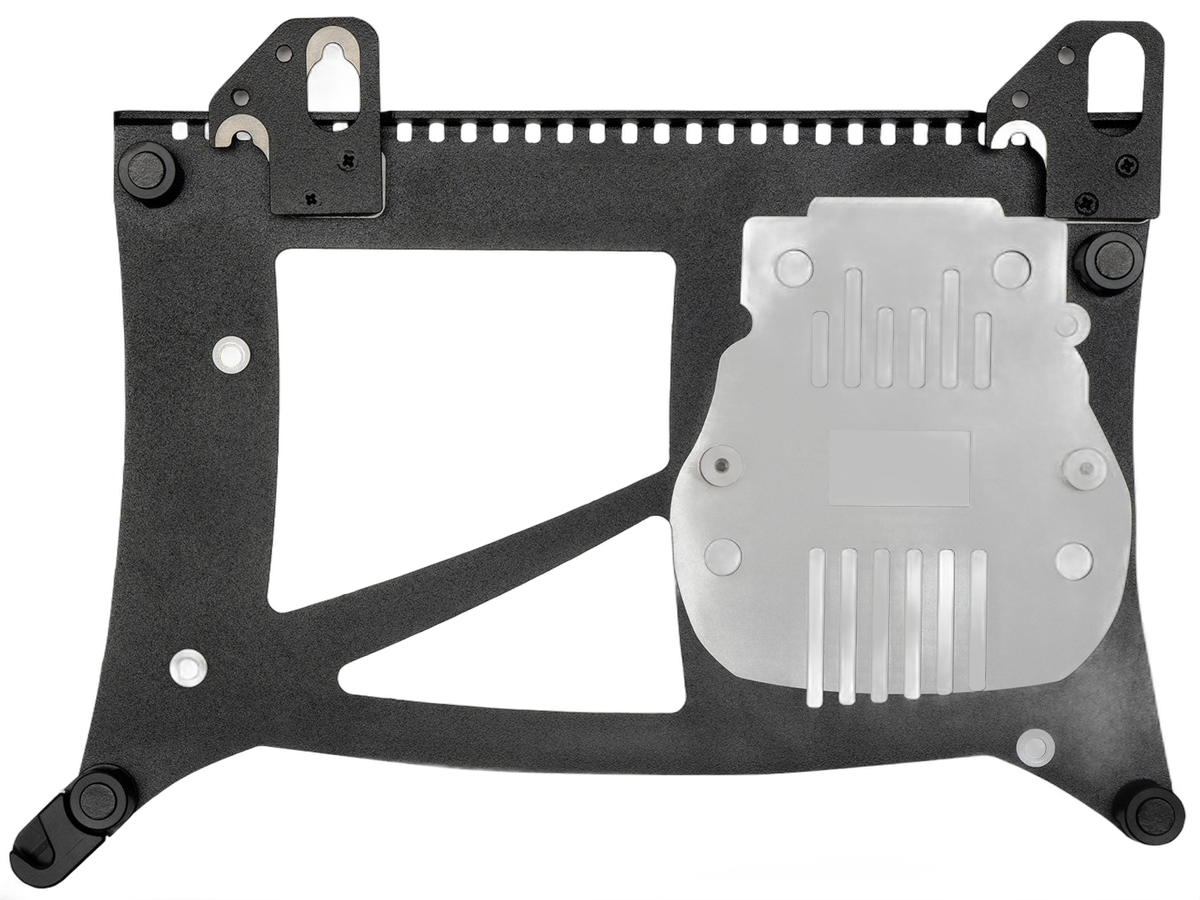

Sound Devices A20-QuickDock
SKU: ARM-ACC-SD-A20QUICKDOCK
Join a compatible Astral receiver to an 8-Series recorder with fewer separate connections. QuickDock provides a purpose-made docking arrangement for audio, power and timecode in a compact location rig.
Key details
- For compatible ARX16/ARX8 receiver and 833/888/Scorpio combinations
- Receiver and recorder sold separately
- Check mounting requirements for your rig
RRP $1,495.00 AUD
Price $1,495.00 AUD
Save $0.00 AUD
Including GSTinc.
In stock
Available from ARM stock.
Contact ARM to confirm stock availability and your required configuration.
TECHNICAL DETAILS
Specifications
The details you need to plan your system. Expand a section to explore.
Compatibility & details
| Specification | Details |
|---|---|
| Receivers | Astral ARX16 and ARX8 |
| Host recorders | 833, 888 and Scorpio |
| Connection | Power, audio and timecode through multi-pin dock |
| Dock height added | 11 mm |
| Dimensions (H × W × D) | 21 × 206 × 151 mm |
| Weight | 230 g, unpackaged |
| Included mounting parts | Quick-release plate, mounting pegs and installation hardware |
Included mounting hardware
| Specification | Details |
|---|---|
| Tools | 2 mm and 1/16-inch Allen keys |
| Receiver plate screws | Four 1/16-inch Allen screws |
| Mounting pillars | Three long and two short |
| Additional hardware | Scorpio mounting hardware |
| Packaged weight | 440 g |
When docked, power comes from the recorder. Most rear connections are disabled; Ethernet is available for control, but ARX16 Dante is disabled.
Technical details compiled from Sound Devices product information and user guides.
