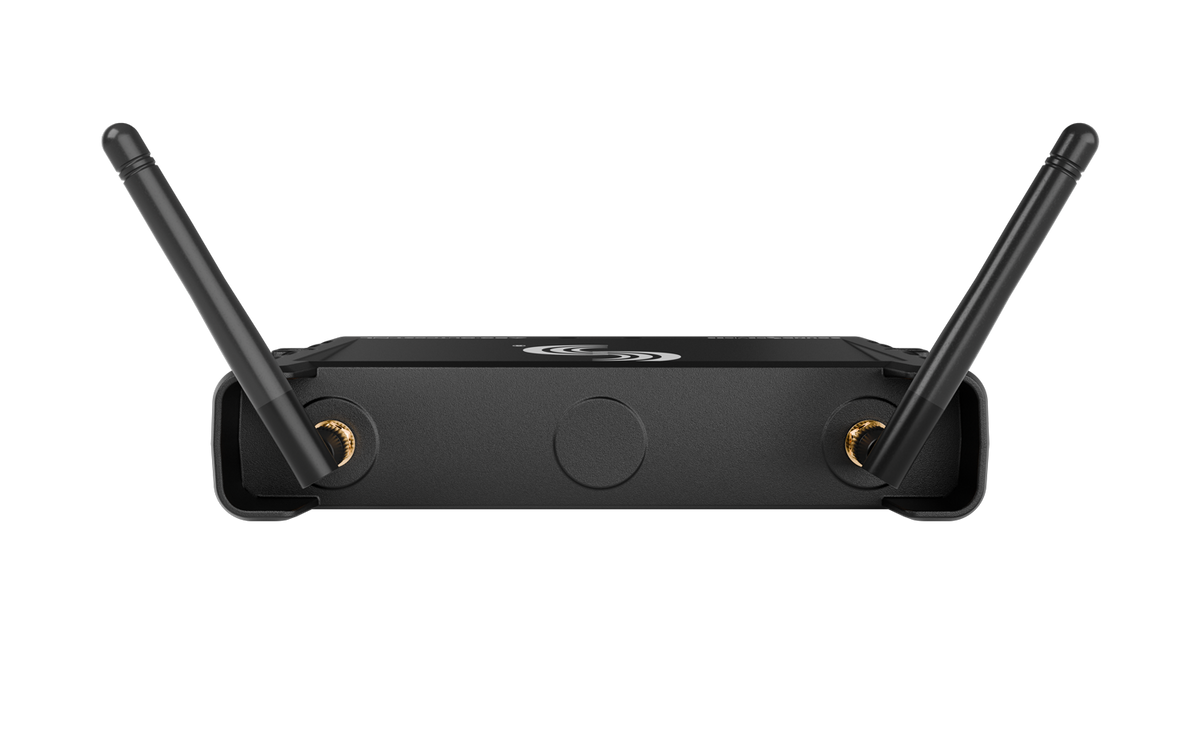

Sound Devices Astral Outpost
SKU: ARM-RF-SD-ASTRALOUTPOST
Extend NexLink control coverage over an Ethernet-based installation with Astral Outpost. Position the remote antenna where it best serves the transmitters while linking it back to a compatible Sound Devices system.
Key details
- Remote NexLink control antenna system
- Supports compatible Cat6 or fibre network arrangements
- Carries transmitter control; not a remote wireless-audio receiver
RRP $3,530.00 AUD
Price $3,530.00 AUD
Save $0.00 AUD
Including GSTinc.
In stock
Available from ARM stock.
Contact ARM to confirm stock availability and your required configuration.
TECHNICAL DETAILS
Specifications
The details you need to plan your system. Expand a section to explore.
System overview
| Specification | Details |
|---|---|
| Function | Remote NexLink antenna extension |
| Compatible receivers | Astral ARX16 and ARX32 |
| Network connection | Cat 6 Ethernet or SFP fibre |
| Power | PoE or USB-C |
| Weather resistance | Rain-resistant enclosure |
| Mounting threads | ¼-inch, ⅜-inch and ⅝-inch mounting blocks |
| Use | Extends transmitter control coverage |
Detailed network, power & physical specifications
| Specification | Details |
|---|---|
| Network Connections / 1x RJ45 port and 1x SFP port | For NexLink control connection to Astral ARX32 and Astral Outpost firmware updates |
| NexLink Protocol | 2.4 GHz, proprietary frequency-hopping backlink control of transmitters over long distance |
| Connections | 2x SMA-F ports for connecting 2.4 GHz SMA-M antennas |
| USB Type / USB-A | 5V, 1.5A output; supports USB thumb drive (formatted FAT32) for firmware updates only. |
| USB Type / USB-C | 5V, 3A (15W) for pairing with Astral ARX32 and/or powering |
| Powering | PoE+ In (15W) |
| Powering / USB-C | 5V, 3A (15W) |
| Environmental Operating Temperature Range | -10 to 40 C; 14 to 104 F |
| Dimensions (H x W x D) | 3.2 cm x 16 cm x 13.2 cm; 1.26 in x 6.3 in x 5.2 in |
| Weight | 0.66 kg (unpackaged); 1.45 lbs. (unpackaged) |
Not compatible with Astral ARX8. Outpost extends NexLink control; it is not an audio receiver.
Technical specifications from Sound Devices product information and user guides, organised for ARM. Features may depend on installed firmware and optional licences.
