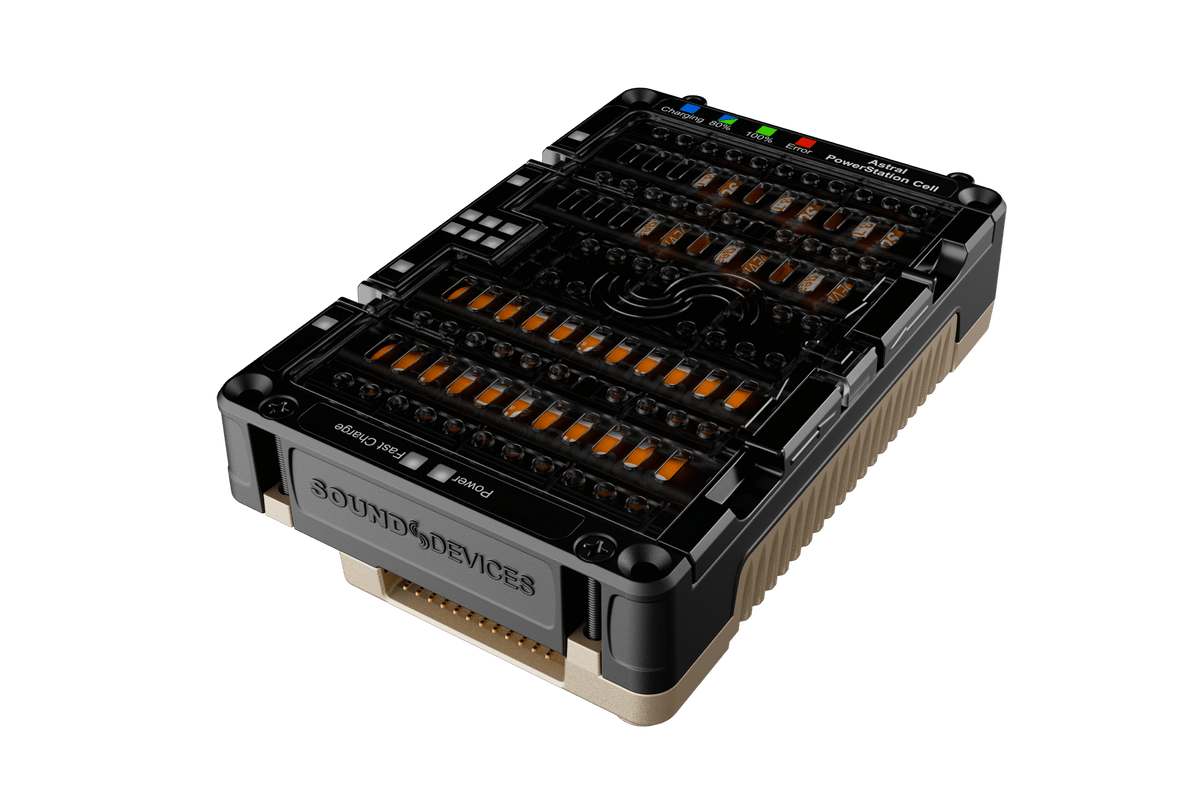

Sound Devices Astral PowerStation Cell

SKU: ARM-ACC-SD-ASTRALPSCELL

Organise compatible Astral transmitter batteries in a modular charging station with PowerStation Cell. Its mixed-format capacity makes it useful for systems combining bodypack and handheld transmitters.

Key details

  • Charges up to six compatible 14500 cells or four compatible 18650 cells
  • Mixed arrangement: three 14500 and two 18650 cells
  • Can be linked in a compatible powered charging setup
  • Power supply, cable and batteries sold separately

Price $595.00 AUD

Including GSTinc.

Available to order

Enquire for current supply date.

Need it by a particular date? Check with ARM.

Tell us what you need and when. We’ll confirm availability and estimated dispatch before you decide to order.

Contact ARM to confirm stock availability and your required configuration.

TECHNICAL DETAILS

Specifications

The details you need to plan your system. Expand a section to explore.

Compatibility & details
Compatibility & details
SpecificationDetails
Charging capacitySix XL-B14500 or four XL-B18650 batteries
Mixed chargingThree XL-B14500 plus two XL-B18650
Power connectionUSB-C
Desktop expansionUp to four linked chargers
Rack installationUp to three chargers with optional rack kit
IndicatorsPower, fast-charge and individual battery status
RetentionRemovable latching door
Charging specifications & indicators
Charging specifications & indicators
SpecificationDetails
Maximum charger consumption25 W with XL-B14500 configuration; 35 W with XL-B18650 configuration
Maximum charging voltage4.2 V
Maximum charge current0.7 A per XL-B14500; 1.8 A per XL-B18650
Reverse battery protectionSupported
Operating temperature0°C to +40°C
Battery statusGreen: fully charged; green/blue: approximately 80%; blue: charging; flashing red: charging error
Fast charge indicationGreen when fast charging is active

45 W supply supports one fully loaded Cell; 140 W supports up to four. Supplies, USB-C cable, batteries and rack kit are separate.

Technical details compiled from Sound Devices product information and user guides.
