Sound Devices CL-16
SKU: ARM-ACC-SD-CL16

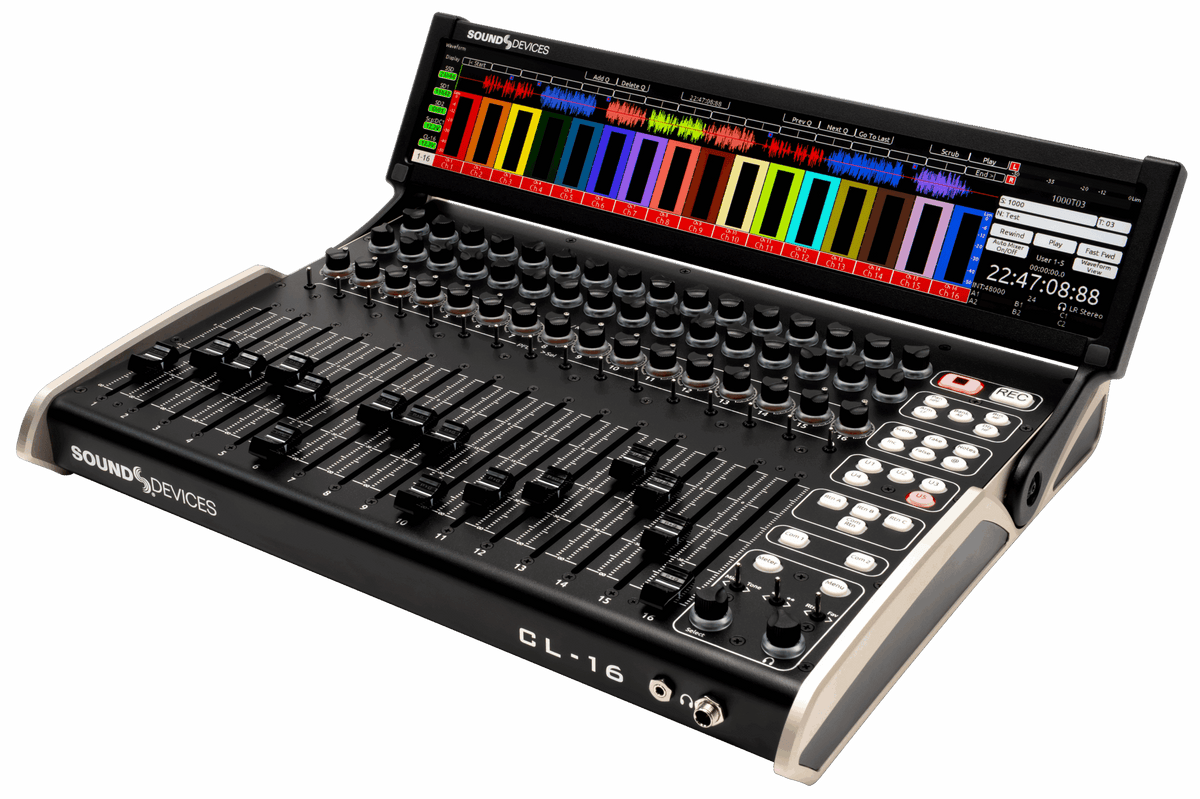

Bring hands-on mixing control to an 8-Series recorder with the CL-16. Sixteen Penny & Giles faders provide a familiar mixing surface, while rotary controls and an integrated display keep key adjustments within reach.
Key details
- For compatible 833, 888 and Scorpio recorders
- 16 Penny & Giles faders and 32 rotary controls
- USB connection to the recorder
- Control surface; requires a compatible recorder and suitable power
RRP $11,150.00 AUD
Price $11,150.00 AUD
Save $0.00 AUD
Including GSTinc.
In stock
Available from ARM stock.
Contact ARM to confirm stock availability and your required configuration.
TECHNICAL DETAILS
Specifications
The details you need to plan your system. Expand a section to explore.
System overview
| Specification | Details |
|---|---|
| Host recorders | 833, 888 and Scorpio |
| Linear faders | 16 Penny & Giles 100 mm faders |
| Dedicated trims | 16 |
| Multifunction rotary controls | 32 |
| Display | Folding panoramic LCD |
| Recorder connection | USB-B |
| USB hub | Five ports: two USB-C and three USB-A |
| Headphone connectors | ¼-inch and ⅛-inch |
| External controls | 10-pin connector and ¼-inch foot pedal input |
| Power | 12 V DC via four-pin XLR; supply separate |
Power
| Specification | Details |
|---|---|
| Voltage | 10-18 V DC at XLR-4. Pin 4 = +, pin 1 = ground. |
| Current Draw | (Min) 560 mA quiescent at 12 V DC in, all USB ports left open; (Mid) 2.93 A, USB ports total load 5 A; (Max) 5.51 A, USB ports total load 10 A |
USB
| Specification | Details |
|---|---|
| Details | USB-A Ports 5 V, 1.5 A each; USB-C Ports 5 V, 3 A each |
Remote Ports
| Specification | Details |
|---|---|
| Power | 5 V, 1 A available on pin 10 |
| Input | 60k ohm typical input Z. Vih = 3.5 V min, Vil = 1.5 V max |
| Output | 100 ohm output Z. Sink current = 10 mA. |
Foot Switch
| Specification | Details |
|---|---|
| Details | 1k ohm typical input Z. Connect to ground to operate (active low). |
Dimensions
| Specification | Details |
|---|---|
| Screen Folded Down | 8.01 cm X 43.52 cm X 32.913 cm; 3.15 in. X 17.13 in. X 12.96 in. |
| Screen Folded Up | 14.64 cm X 43.52 cm X 35.90 cm; 5.76 in. X 17.13 in. X 14.13 in. |
Weight
| Specification | Details |
|---|---|
| Details | 4.71 kg; 10 lbs 6 oz |
Requires a compatible 8-Series recorder. It is not a standalone mixer or general-purpose DAW controller.
Technical specifications from Sound Devices product information and user guides, organised for ARM. Features may depend on installed firmware and optional licences.
