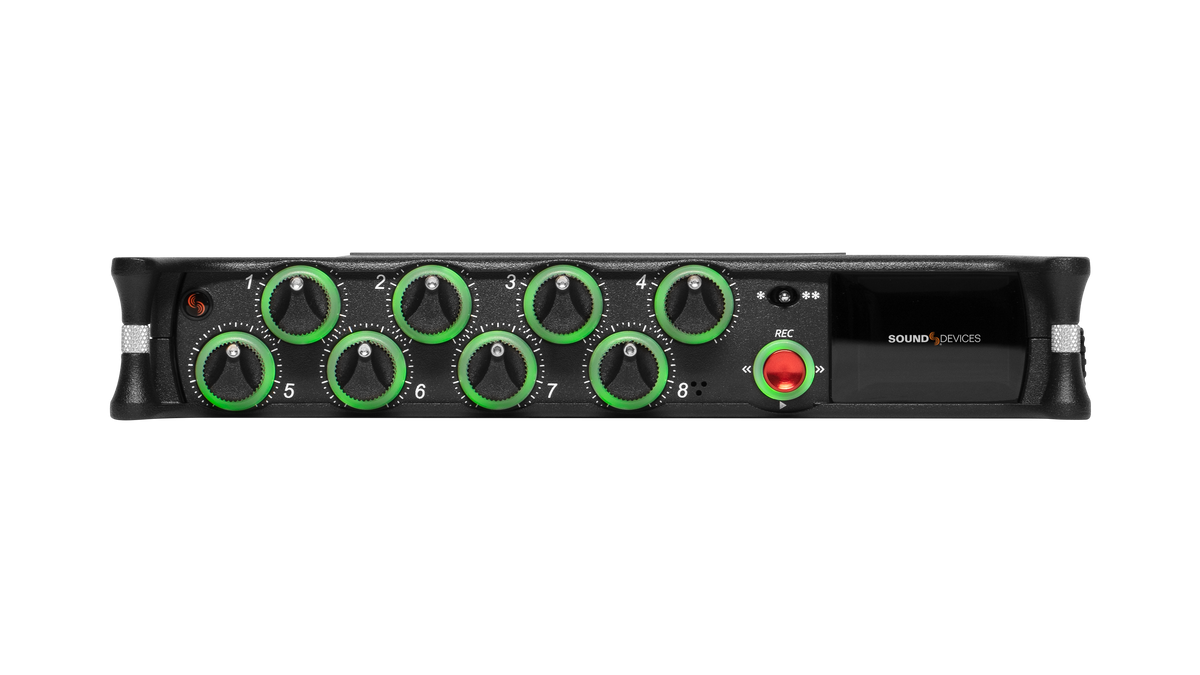

Sound Devices MixPre-10 II
SKU: ARM-REC-SD-MIXPRE10II
The MixPre-10 II combines location recording, mixing and USB interfacing in one portable unit. Eight microphone preamps and flexible additional inputs make it suited to interviews, music sessions and productions that need several isolated sources.
Key details
- Eight microphone preamps; 10-channel mixer and up to 12 recorded tracks
- 32-bit float recording at sample rates up to 192 kHz
- Integrated timecode with BNC connectivity
- USB audio interface with 12 inputs and four outputs
- Includes MX-8AA battery sled and XL-WPH3 power supply; batteries sold separately
RRP $3,650.00 AUD
Price $3,650.00 AUD
Save $0.00 AUD
Including GSTinc.
Available to order
Enquire for current supply date.
Contact ARM to confirm stock availability and your required configuration.
TECHNICAL DETAILS
Specifications
The details you need to plan your system. Expand a section to explore.
System overview
| Specification | Details |
|---|---|
| Microphone preamps | 8 Kashmir preamplifiers |
| Mixer channels | 10 |
| Recording tracks | 12 |
| Recording resolution | Up to 32-bit float / 192 kHz |
| Recording media | SD card |
| Timecode | Internal generator and BNC connections |
| Display | Colour touchscreen |
| Monitoring | Headphone output with level control |
| Battery sled | MX-8AA; eight AA cells |
| Included AC supply | XL-WPH3 |
| USB cable | USB-C to USB-C |
| Optional battery power | L-mount sled accessories |
Audio Inputs
| Specification | Details |
|---|---|
| Frequency Response | 10 Hz to 80 kHz +/- 0.5 dB re 1 kHz @ 192 kHz sample rate |
| THD + Noise | 0.005% max (@1kHz, 22-22 kHz BW, gain=20 dB, -10 dBu in) |
| ADC | 32 bit precision; 142 dB dynamic range min (A-weighted, gain=10 dB, fader=0 dB) |
| Equivalent Input Noise | -130 dBV (-128 dBu) max (A-weighting, gain=76 dB, 150 ohm source impedance) |
| Inputs / Mic | XLR active-balanced; 4k input |
| Inputs / Line | XLR active-balanced; 4k input |
| Inputs / Aux/Mic in | 3.5 mm TRS, 2-channel unbalanced; 2.2k |
| Inputs / Line | ¼-inch TRS active-balanced; 4k input |
| Inputs / USB Audio | 4 channels |
| Inputs / 10 Total analog inputs | 8 mic-line inputs, 2 on Aux In |
| Inputs | All inputs fully RF-filtered and overload protected. |
| Gain / Mic input | +6 dB to +76 dB |
| Gain / Line input | -20 dB to +30 dB |
| Gain / Fader | -inf to +20 dB |
| Gain / Headphone | -inf to +20 dB |
| Gain / Total, Mic-to-recording (max) | +96 dB |
| Gain / Aux In (Mic) | Gain = +10 dB to +40 dB |
| Gain / Aux In (Line) | Gain = -10 dB to +20 dB |
| Gain / Total Aux Gain including Fader (Mic-to-recording) | +60 dB |
| Maximum Input Level / Mic XLR | +14 dBu (limiters on or off) |
| Maximum Input Level / Line XLR/¼-inch | +28 dBu (limiters on or off) |
| Maximum Input Level / Aux In (Mic) | -10 dBu |
| Maximum Input Level / Aux In (Line) | +10 dBu |
| Low Cut Filters | 40 Hz to 160 Hz (adjustable), 18 dB/oct. First stage analog, subsequent stages digital. |
| Microphone Powering / Mic XLRs | 48 V via 6.8k resistors, 10 mA each |
| Microphone Powering / Mic 3.5 mm | 3 V @ 3k source |
| Limiters | Limiter at all gain stages, range > 40 dB. First stage analog, subsequent stages digital. Adjustable Threshold, Ratio, and Release. |
Audio Outputs
| Specification | Details |
|---|---|
| DAC feeding Stereo Out, Headphone Out | 32 bit precision; 115 dB dynamic range (A-weighted) |
| L/R Out | TA3 2-channel balanced, 1.1K max output impedance, +18 dBu max output level |
| X1/X2 Out | 3.5 mm TRS stereo unbalanced, 500 ohm output impedance, +7.8 dBu max output level |
| Headphones Out | 3.5 mm TRS stereo unbalanced, 300 mW + 300 mW, for use with any impedance headphones |
USB
| Specification | Details |
|---|---|
| Audio Interface (USB-C) | 12-in/4-out; 44.1 to 96 kHz; 16/24/32-bit integer, 32-bit float; Class-compliant USB 2.0 high speed or ASIO® driver (supplied via download) |
| Mass Storage (USB-C) | USB 2.0 high speed |
| Keyboard (USB-A) | Text entry and control |
| Thumbdrive (USB-A) | Manual or auto-copy to drive |
| Details | Midi Control Surface (USB-A) |
Recording
| Specification | Details |
|---|---|
| Maximum Record Tracks / 12 Tracks | Stereo mix + 10 ISOs |
| Sampling Frequency | 44.1 kHz; 47.952 kHz; 48 kHz; 48.048 kHz; 96 kHz; 192 kHz |
| Bit Depth | 16; 24; 32 Float |
| Recording Storage / Type | SD, SDXC, SDHC Card (USB thumbdrive, copy only) |
| Recording Storage / Max Storage Size | 512 GB (SDXC) |
| Recording Storage / Card format | exFAT |
| File Types | Polyphonic WAV |
Timecode
| Specification | Details |
|---|---|
| Timecode Modes | Free Run; Time of Day (file stamped w/current ToD); Rec Run; Ext LTC (file stamped w/incoming LTC on BNC or Aux 3.5mm); Camera TC (file stamped w/incoming TC from cameras that output TC) |
| Timecode Frame Rates | Auto-detects (fps); 23.98 (same as 23.976); 24; 25; 29.97DF; 29.97ND; 30; 30DF |
| Sync Source | Internal, Word Clock, Ext LTC |
| BNC In (TC In) | Switchable between Timecode (default) or Word Clock Input |
| BNC In (TC In) / Timecode | 20k ohm impedance, 0.3 V – 3.0 V p-p (–17 dBu – +3 dBu) |
| BNC In (TC In) / Word Clock | 10k ohm impedance, 1.5 V p-p |
| BNC Out (TC Out) | Switchable between Timecode (default) or Word Clock Output |
| BNC Out (TC Out) / Timecode | 1k ohm impedance, 3.0 V p-p (+12 dBu) |
| BNC Out (TC Out) / Word Clock | 75 ohm impedance, 5 V p-p |
| HDMI | TC Reader via HDMI |
| Sample/Timecode Accuracy | 0.2 ppm (0.5 frames per 24 hours) |
Remote Control
| Specification | Details |
|---|---|
| Bluetooth LE | Wireless control using Wingman app |
| HDMI (micro) | Auto-record start/stop trigger from cameras that output record flag over HDMI |
| Timecode | Auto-record start/stop trigger via Aux In timecode |
File Delivery to Cloud
| Specification | Details |
|---|---|
| Details | Compatible with Viviana Cloud |
Touch Screen
| Specification | Details |
|---|---|
| Details | 320×256; 1.6-inch, color, sunlight-viewable IPS LCD |
Power
| Specification | Details |
|---|---|
| AA Batteries | 8x AA sled (included). NiMH recommended |
| L-Mount | Optional sled for 2x (hot-swappable) Li-ion batteries |
| AC Adapter | XL-WPH3 (included): Universal, 45 W in-line AC-to-DC power supply Hirose 4-pin DC plug, with detachable IEC power cord. 100-240, 50/60 Hz |
Environmental
| Specification | Details |
|---|---|
| Operating | -20°C to 60°C, 0 to 90% relative humidity; (non-condensing) |
| Storage | -40°C to 85°C |
Dimensions (H x W x D)
| Specification | Details |
|---|---|
| Details | 3.6 cm x 20.6 cm x 17.5 cm; 1.375” x 8.125” x 6.875” |
Weight
| Specification | Details |
|---|---|
| Details | 0.91 kg (unpackaged, without batteries); 32.1 oz. (unpackaged, without batteries) |
Batteries and optional plugins are sold separately.
