Sound Devices SL-2
SKU: ARM-RF-SD-SL2

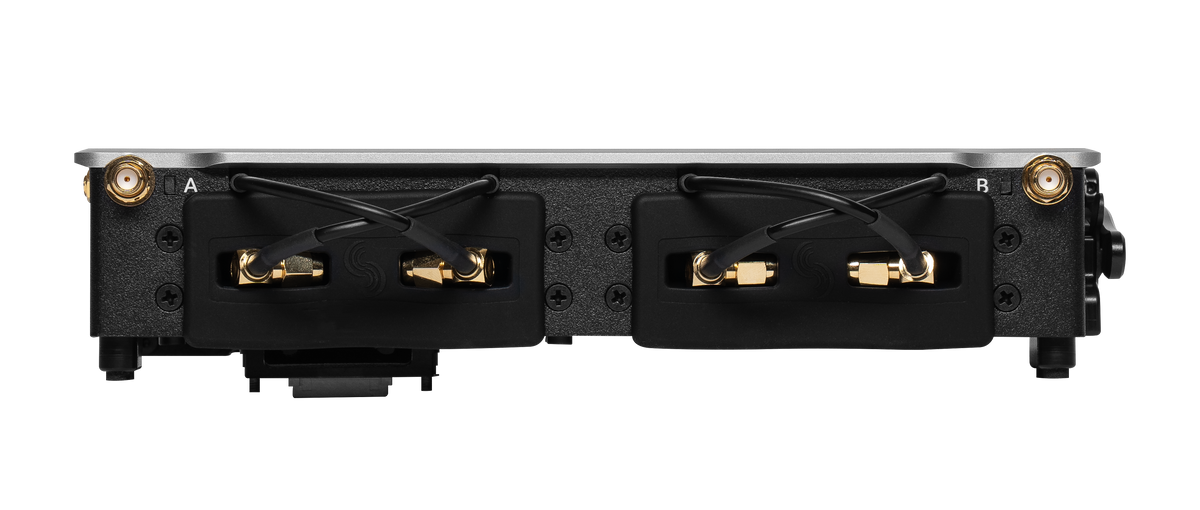

Simplify a compatible 8-Series wireless rig with the SL-2 dual SuperSlot module. It brings supported slot receivers, antenna distribution and power into a dedicated recorder-mounted arrangement.
Key details
- For compatible 833, 888 and Scorpio recorders
- Two SuperSlot receiver bays
- Up to eight receiver audio channels, depending on installed receivers
- Additional AES inputs via TA3 connections
- Receivers sold separately
RRP $4,525.00 AUD
Price $4,525.00 AUD
Save $0.00 AUD
Including GSTinc.
Available to order
Enquire for current supply date.
Contact ARM to confirm stock availability and your required configuration.
TECHNICAL DETAILS
Specifications
The details you need to plan your system. Expand a section to explore.
System overview
| Specification | Details |
|---|---|
| Compatible recorders | 833, 888 and Scorpio |
| Receiver slots | Two UniSlot / SuperSlot bays |
| Slot capacity | Up to four audio channels per slot with supported receivers |
| Audio formats | Analogue and digital |
| Antenna distribution | Built-in, with power for supported active antennas |
| Additional AES inputs | Two TA3 connectors; four AES3 channels |
| Auxiliary antenna ports | Two MCX |
| DC outputs | Two four-pin Hirose; up to 500 mA each |
| Power | From the host 8-Series recorder |
| Dimensions (H × W × D) | 45 × 213 × 131 mm |
Powering
| Specification | Details |
|---|---|
| Details | All power supplied by host 8-series machine; SL-2 idle power draw 1.3 W (without receivers or antenna) |
Antenna
| Specification | Details |
|---|---|
| Antenna Impedance | 50 ohms |
| Antenna Powering | 12V at 200 mA, menu selectable on/off; Serial remote control, Wisycom-compatible for ADFA and LFA powered antenna etc. |
| Antenna Pre-select Filters | Menu selectable; Wideband/bypass (low pass filter, 1.7 GHz upper cut-off); 470-614 MHz; 542-694 MHz; 606-770 MHz; 770-960 MHz; 1240-1260 MHz |
Input RF Attenuators
| Specification | Details |
|---|---|
| Details | 0 to −18 dB, in 6 dB steps, menu selectable |
RF Outputs
| Specification | Details |
|---|---|
| Details | Auxiliary Antenna Outputs for additional receiver |
DC Outputs 1-2
| Specification | Details |
|---|---|
| Details | 500 mA max (each), 6-18 VDC passed through from host 8-series machine, depending on power source. Hirose 4-pin connector: pin 4 = +, pin 1 = ground. |
AES Inputs
| Specification | Details |
|---|---|
| Details | Two pairs for a total of four channels, AES-3 balanced, 110 ohms, TA-3 connectors |
Dimensions
| Specification | Details |
|---|---|
| H x W x D | 4.5 cm x 21.3 cm x 13.1 cm; (1.8 in x 8.4 in 5.1 in) |
| Weight | 1.35 lbs (unpackaged); 0.61 kg (unpackaged) |
Wireless receivers are sold separately. Maximum channel count and remote functions depend on the fitted receiver.
Technical specifications from Sound Devices product information and user guides, organised for ARM. Features may depend on installed firmware and optional licences.
