Sound Devices / Professional Audio

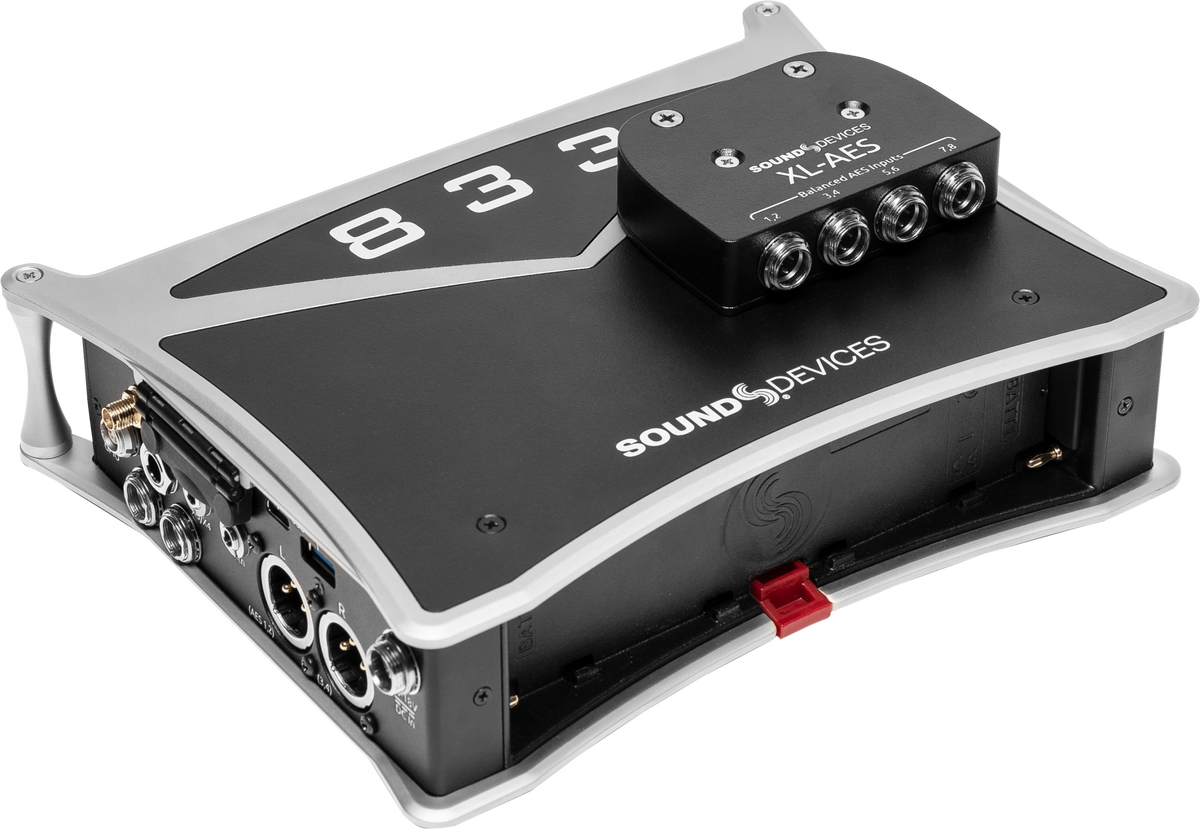

Sound Devices XL-AES
SKU: ARM-ACC-SD-XLAES
Expand a compatible 8-Series recorder's AES input connectivity with the XL-AES adapter.
Key details
- Eight channels of AES3 input via four TA3 male connectors
- For compatible 833, 888 and Scorpio configurations
- Recorder sold separately
RRP $510.00 AUD
Price $510.00 AUD
Save $0.00 AUD
Including GSTinc.
Available to order
Enquire for current supply date.
Contact ARM to confirm stock availability and your required configuration.
TECHNICAL DETAILS
Specifications
The details you need to plan your system. Expand a section to explore.
Compatibility & details
| Specification | Details |
|---|---|
| Compatible recorders | 833, 888 and Scorpio |
| Audio channels | Eight AES3 inputs |
| Connectors | Four TA3 male |
| Input impedance | 110 ohms |
| Power | From the host recorder |
| Weight | 122 g |
| Overall size (H × W × D) | 26 × 79 × 61 mm |
Electrical & installation details
| Specification | Details |
|---|---|
| Minimum input signal | 200 mV |
| Wiring | Pin 1 ground; pin 2 positive; pin 3 negative |
| Height above recorder | 19 mm |
Technical details compiled from Sound Devices product information and user guides.
